PRODUCT INFORMATION

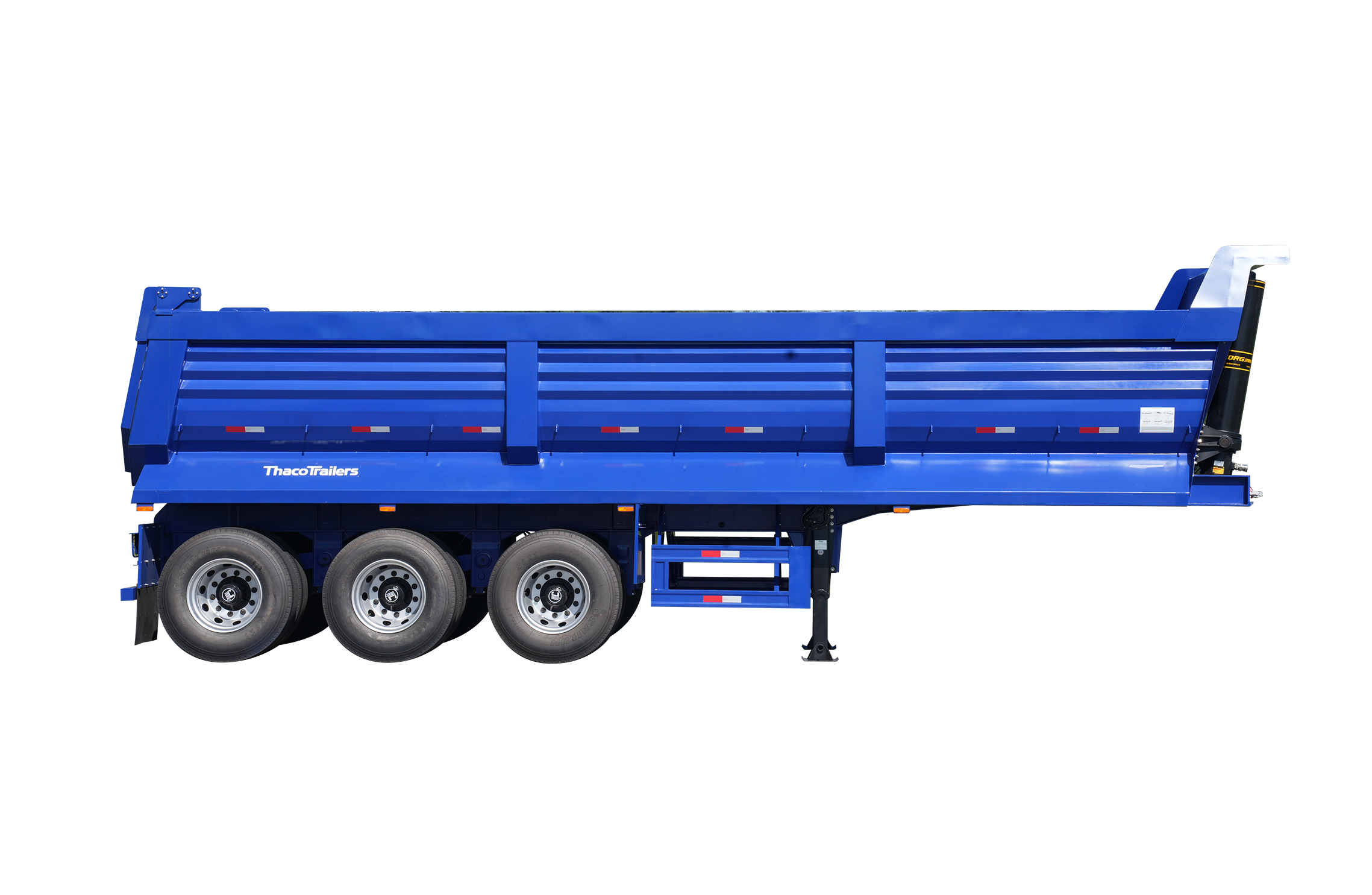

Lightweight dump with GEORG hydraulic system
- The robust beam frame structure and a cargo volume of up to 25 m³ integrated with the GEORG hydraulic system provide powerful self-unloading capability through a strong lifting mechanism. The product is suitable for transporting various bulk goods, construction materials, and agricultural products.
- Color as requested.
Reference price: 501,000,000 VNĐ
Contact Thaco Trailers for detailed information/pricing
LIGHTWEIGHT DUMP WITH GEORG HYDRAULIC SYSTEM
PRODUCT DETAILS
Axles
Suspension System
Wheels & Tires
Landing Gear
Hydraulic System
LIGHTWEIGHT DUMP WITH GEORG HYDRAULIC SYSTEM
TECHNICAL SPECIFICATIONS
Overall Dimensions
9,300 x 2,500 x 3,310 mm
Wheelbase
4,610 + 1,310 + 1,310 mm
Tare Weight
7,900 kg
Maximum Payload / Permissible Payload
32,100 / 29,010 kg
Maximum Gross Weight / Permissible Gross Weight
40,000 / 36,910 kg
Cargo Volume
~25 m³
Internal Cargo Dimensions
8,470 x 2,420 x 1,270 mm
Main Beam
Welded Beam 500/140 mm
Axle
Jinsheng 13-ton
Kingpin
2″ (ø50), Bolt Connection
Landing Gear
Fuwa 28-ton
Hydraulic System
GEORG CFC210-5-6820-K0343-B
Suspension
Jinsheng Shock Absorber, 7-leaf Spring (90×16 mm)
Brake Valve
Wabco
Brake System
Locke 3-axle
Electrical System
24V
Tire Size
12R22.5
Painting Technology
- Surface Cleaning by Shot Blasting SA 2.5,
- Primer,
- Finish Paint
Color (upon request)
Standard color
