PRODUCT INFORMATION

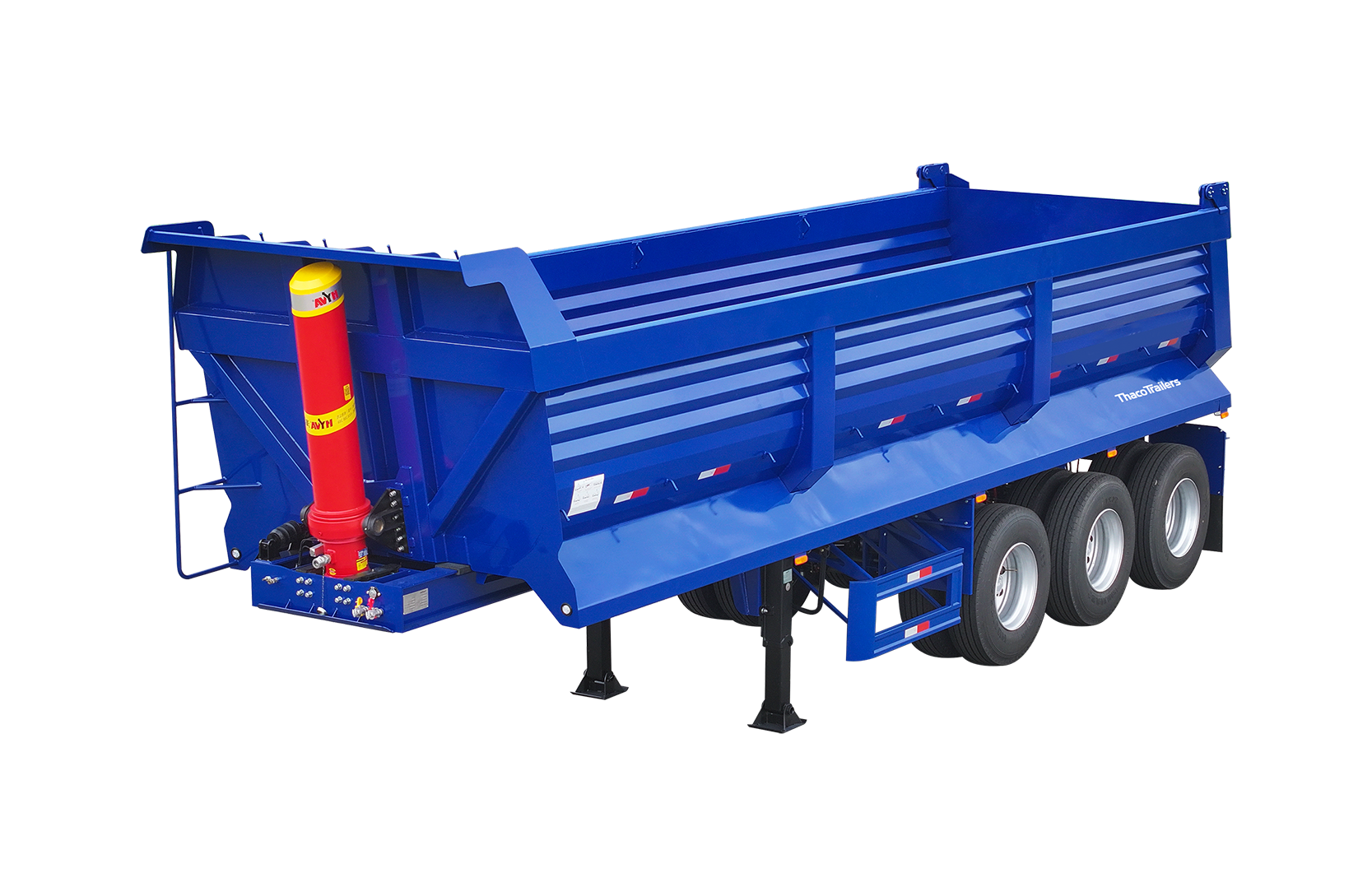

Lightweight dump
with HYVA hydraulic system

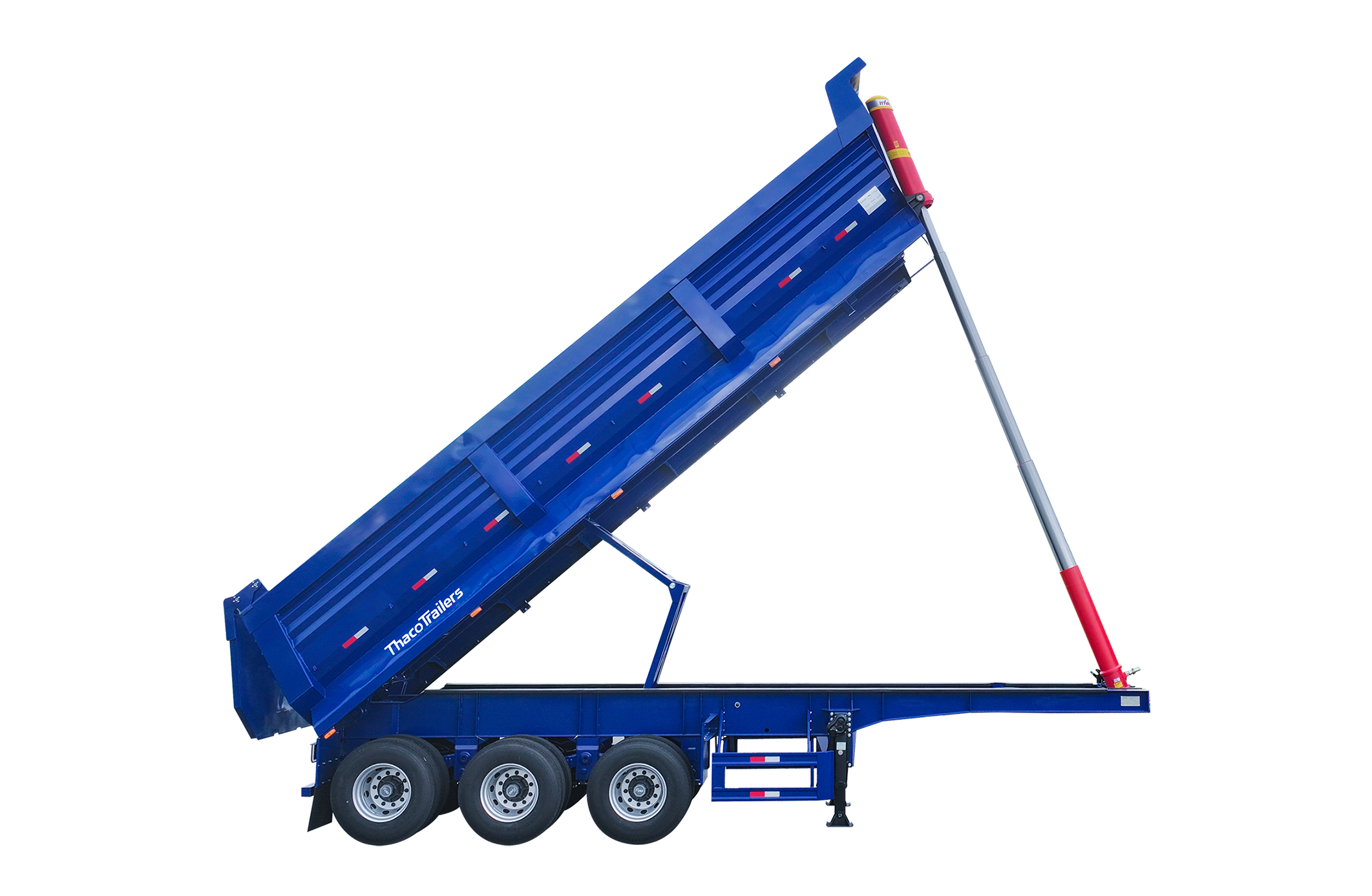

- The robust beam frame structure and a cargo volume of up to 25 m³ integrated with the HYVA hydraulic system provide powerful self-unloading capability through a strong lifting mechanism. The product is suitable for transporting various bulk goods, construction materials, and agricultural products.
- Color as requested.
Reference price: 532,000,000 VND
Contact Thaco Trailers for detailed information/pricing
LIGHTWEIGHT DUMP WITH HYVA HYDRAULIC SYSTEM
PRODUCT DETAILS
Axles
Suspension System
Wheels & Tires
Landing Gear
Hydraulic System
LIGHTWEIGHT DUMP WITH HYVA HYDRAULIC SYSTEM
TECHNICAL SPECIFICATION
Overall Dimensions
9,300 x 2,500 x 3,310 mm
Wheelbase
4,610 + 1,310 + 1,310 mm
Tare Weight
7,900 kg
Payload Capacity
29,010 kg
Gross Vehicle Weight (GVW)
36,910 kg
Cargo Volume
~25 m³
Internal Cargo Dimensions
8,470/8,470 x 2,440/342 x 1,270 mm
Main Beam
Welded Beam 500/140 mm
Axle
Fuwa 13-ton
Kingpin
2″ (ø50), Bolt Connection
Landing Gear
Fuwa 28-ton
Hydraulic System
HYVA FC A202-5-06695-009-K0343
Suspension
Fuwa Shock Absorber, 7-leaf Spring (90×16 mm)
Brake Valve
Wabco
Brake System
Locke 3-axle
Electrical System
24V
Tire Size
12R22.5
Painting Technology
- Surface Cleaning by Shot Blasting SA 2.5,
- Primer,
- Finish Paint
Color (upon request)
Standard color
